Imagine a glass railing that rises to become a full enclosure when you seek privacy, and lowers when you want open, unobstructed views. Our unique automatic retractable glass wall acts as a permanent safety barrier that transforms into a glass railing whenever you need it.
It’s not just a railing. It’s not just an enclosure.
INFINIA is the only motorized system that performs both functions whenever you need them. It is the ultimate electric guillotine system designed to work as an automatic retractable glass wall, offering total flexibility for your space.
CHOOSE YOUR PERFECT INFINIA
Infinia is a state-of-the-art electric guillotine system that provides perfect thermal and acoustic insulation. Designed without vertical lines, it ensures your views remain completely uninterrupted.

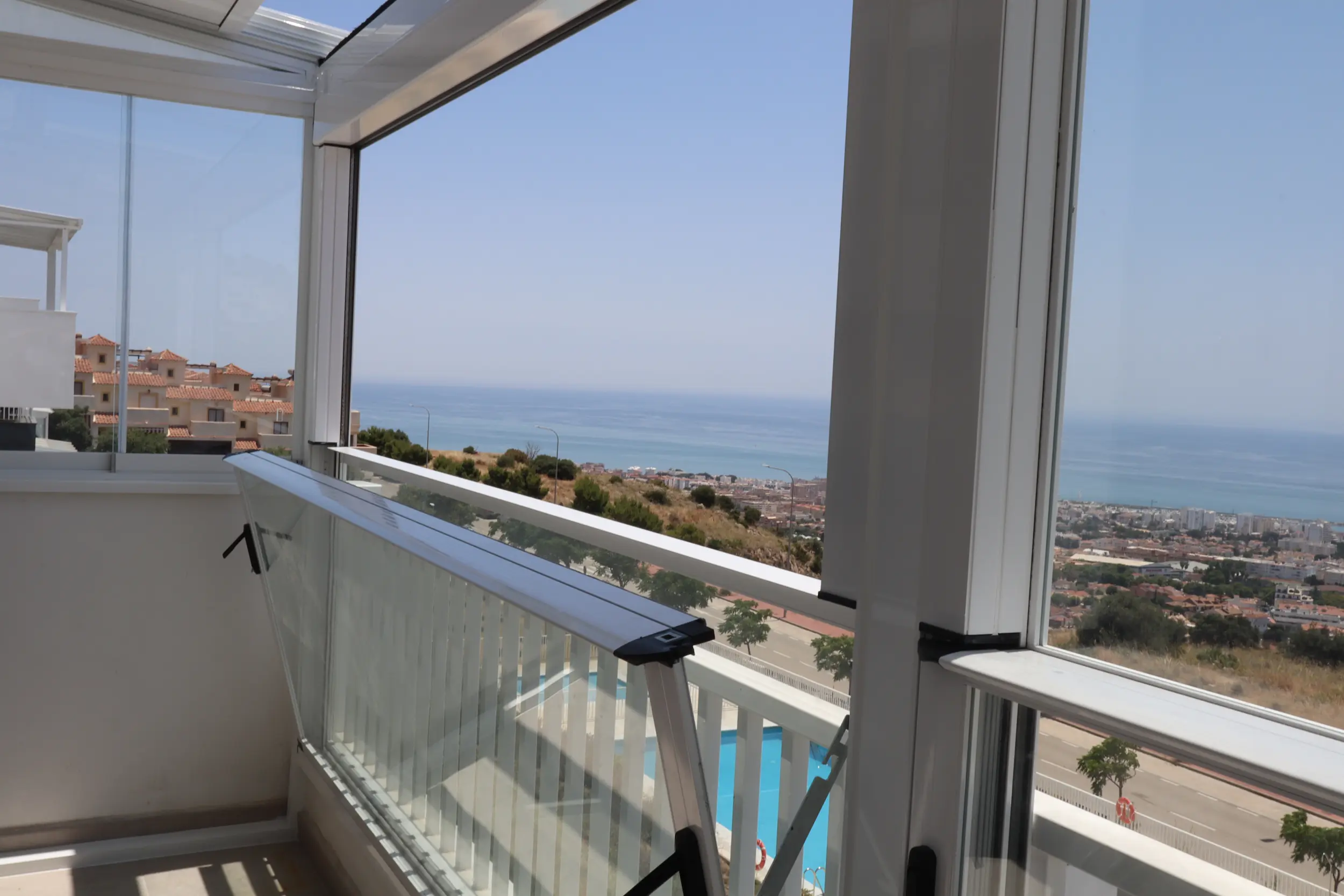

When the mobile panels are stacked in the lowest position, the fixed bottom glass acts as a certified safety railing (CTE compliant). By raising the panels via the integrated motor, the system transforms into a complete panoramic automatic retractable glass wall. Precision height control is managed easily via remote or key.
- 2 Panels (1 fixed + 1 mobile): Maximum height 2.5 m. Ideal for residential and standard hospitality projects. - 3 Panels (1 fixed + 2 mobile): Maximum height 3.6 m. Perfect for large openings and premium architectural projects. - Safety first: The bottom panel is always fixed and acts as a safety barrier when the system is open.
- Standard thickness: 8 mm tempered glass. - Optional Double Glazing: 5/10/5 or 6/8/6 mm (20mm total) for superior thermal and acoustic insulation. - Adjustable height: Panel sizes are customized based on your specific configuration.
- Integrated 120Nm motor with chain transmission. - Anti-sway counterweights for stable, silent movement. - Controlled via remote or security key. - Compatible with Smart Home platforms (Alexa, Google Home, etc.).
- Width: Min 1,000 mm / Max 4,000 mm per section. - Height: Up to 2.5 m or 3.6 m (depending on configuration). - Max surface per installation: 10 m².
Designed for long-term durability with minimal maintenance. Includes a tiltable panel for easy cleaning and access. Glass panels are easily replaceable and simple to maintain.
One-button control
Remote control or key operation. Panel up: total privacy. Panel down: open views. Optional smart home integration (Alexa, Google Home).
120Nm Motor
Views without compromise
Transparent glass that protects without blocking the horizon. It’s like an invisible wall that stops the wind.
Up to 3.6m height
Silent operation
Anti-sway counterweight system. Quiet motor. Smooth sliding for years to come.
Silent Motor
Built to withstand anything
Certified for extreme winds and impacts. Laminated glass that maintains integrity even if broken.
CTE Certified
2-in-1 Functionality
A safety railing when open; a full enclosure when closed. The only electric guillotine system that performs both roles.
Unique System
Versatile installation
2 or 3-panel configurations. Adaptable to different heights. Full RAL color finishes available.
Flexible Installation
Stand out with certified safety and premium smart home integration.
Vertical movement of middle/upper panel, fixed bottom panel. Ext. dimensions: 3000 x 3000 mm: - Wind Load: Class A1 - Acoustic Performance: 35 dB - Thermal Transmittance: 5.64 W/m²K - Watertightness: Class 1A - Hazardous substances: None
Vertical movement of middle/upper panel, fixed bottom panel. Ext. dimensions: 4000 x 2500 mm: - Wind Load: Class 1 (600 Pa) - Acoustic Performance: 30 dB - Thermal Transmittance: 5.64 W/m²K - Air Permeability: Class 2 - Watertightness: N/A - Hazardous substances: None
- Tested width: 3000 mm - Tested railing height: 990 mm - Glass type: 10 mm tempered - Load resistance: 1.6 kN/m - Soft body impact test: Pass - Hard body impact test: Pass - Categories of use: A, B, C1, C2, C3, C4, E, F, D, G
- Tested width: 4000 mm - Tested railing height: 850 mm - Glass type: 4T/12/4T Double Glazing - Load resistance: 0.8 kN/m - Soft/Hard body impact tests: Pass - Categories of use: A, B, C1, C2, D, G
Successfully passed: - 50 kg bag impact test from a height of 1.2 m. - Push tests with a force of 1.6 kN/m - Achieved usage categories: C3, C4, E, and F (Suitable for public access, high traffic, and elevated locations).
What makes INFINIA different from other motorised glass walls?
It is a genuine 2-in-1: when open, the panels stack at the bottom and the fixed lower panel acts as a CTE-certified railing; when closed, it becomes a panoramic frameless enclosure.
Add remote/key control, home automation, chain-driven motor with counterweights, and heights up to 3.6 m.
What configurations are available?
2-Panel System: Up to 2.5m high (1 fixed panel + 1 motorized panel). Ideal for residential use.
3-Panel System: Up to 3.6m high (1 fixed panel + 2 motorized panels). Recommended for large-scale and commercial projects.
Is it complicated to use?
Does it work with my smart home?
What happens during a power outage?
Will it withstand the wind and rain in my area?
Does it make a lot of noise when moving?
Do I need to do construction work on my terrace?
What maintenance is required?
If I have a problem, will you provide support?
How much does an INFINIA glass wall cost?
